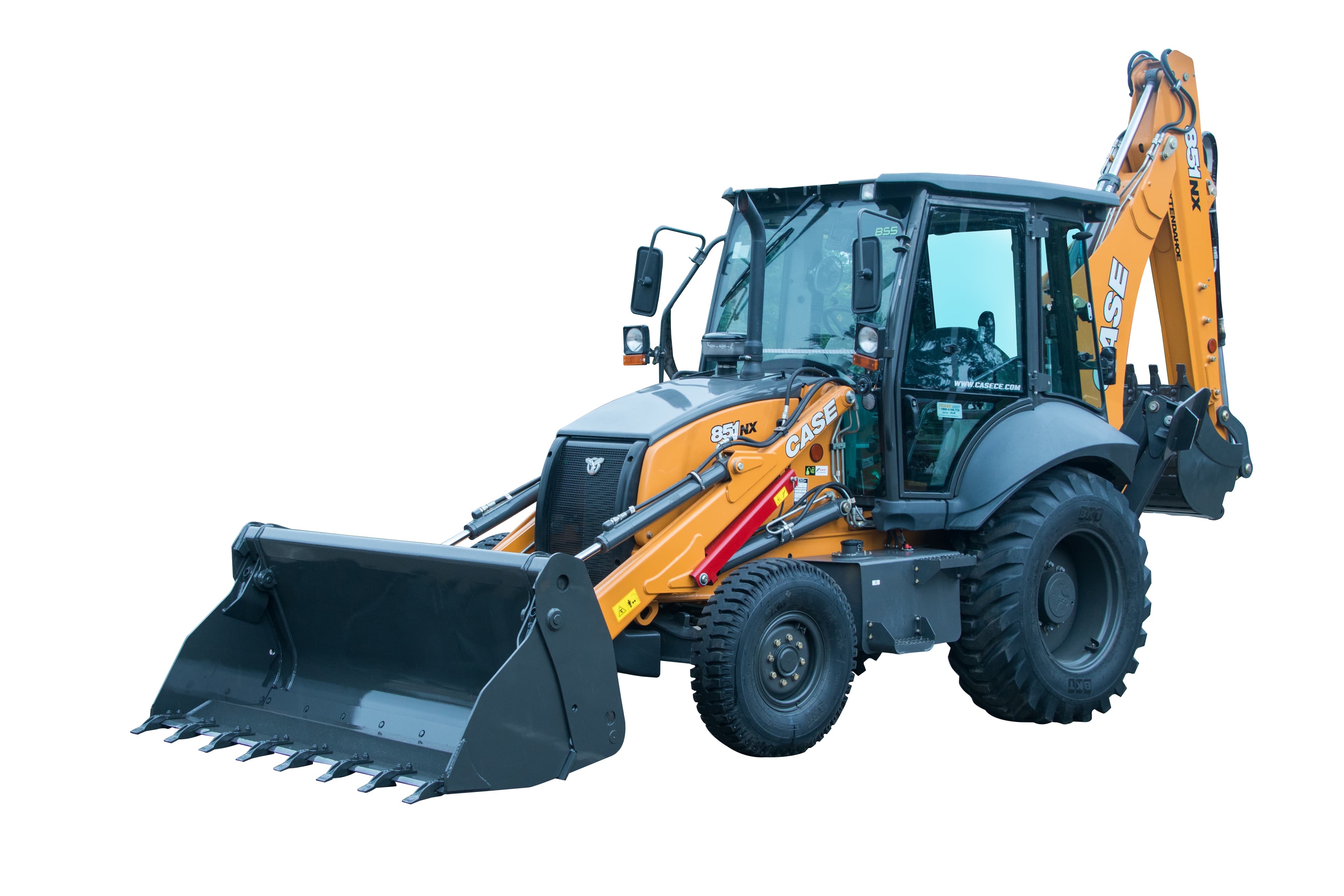

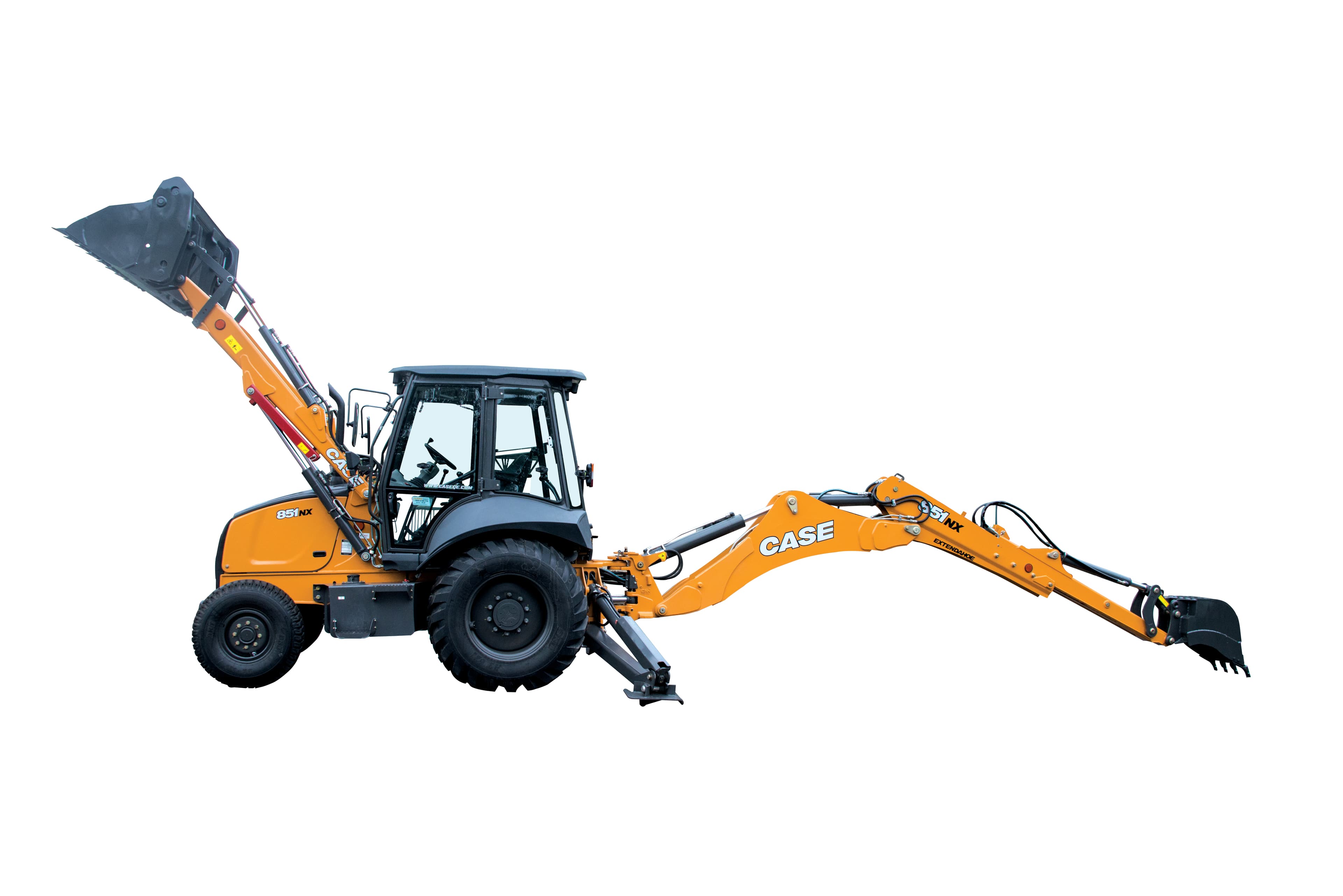

851 NX
The Heavyweight Champion of Material Handling
Key Specifications
Engine
CNH F28-C (54.6 kW / 74 hp)
Operating Weight
7800 kg
Max. Digging Depth
4.70 m
Loader Bucket Capacity
1.2 cu.m
Max. Payload
2050 kg
Backhoe Breakout Force
Up to 6550 kgf
Hydraulic Pump Flow
143 lpm (Variable Displacement)
Highlights
- Best-in-class 2050 kg maximum loader payload capacity
- Oversized 1.2 m³ standard loader bucket for high-volume material moving
- Exceptional backhoe breakout forces reaching up to 6550 kgf
- Heaviest-in-class 7800 kg frame for ultimate machine stability
- CEV Stage-V electronic common rail direct injection engine
- Advanced 143 lpm Open Center Load Sensing hydraulic system
- Optional 4-in-1 Bottom Dump Bucket (BDB) and High Dump configurations
- Comprehensive CASE Care Gold & Protect warranty support compatible
The 851 NX is the absolute pinnacle of the NX series, engineered specifically for high-volume loading and extreme duty-cycle environments. Boasting a massive 7800 kg operating weight and a best-in-class maximum payload of 2050 kg, this machine is designed to move more material in less time. The standard equipment includes a high-capacity 1.2 cubic meter loader bucket, perfectly paired with reinforced loader arms that deliver a formidable 5000 kgf bucket breakout force. The backhoe is equally devastating, offering an immense tear-out force of up to 6550 kgf and a 4.7-meter dig depth to power through the most compacted, rocky soils. Driven by the advanced CEV Stage-V compliant CNH engine and governed by heavy-duty Carraro transmission and axles, the 851 NX delivers unyielding raw power without compromising on the sophisticated telematics, operator comfort, and efficiency features of the NX lineup.
